Hydraulic equipment
Electronically controlled equipment, Valve packs, sensor manifolds, and control systems.
Subsea electronically controlled equipment
Valve packs, sensor manifolds, and control systems.

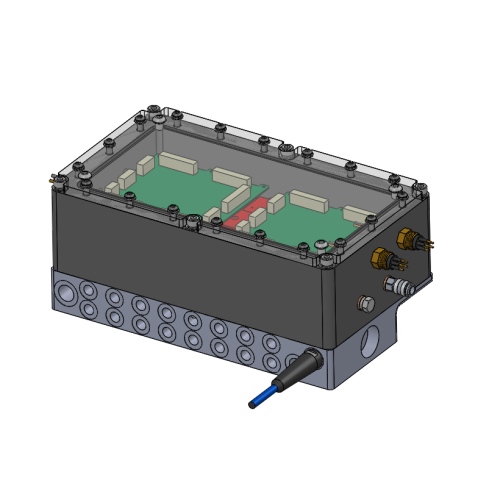

Valve pack
Serial controlled valve pack that can have a selection of solenoid or proportional valves fitted, and is available in 8 or 12 starion versions.

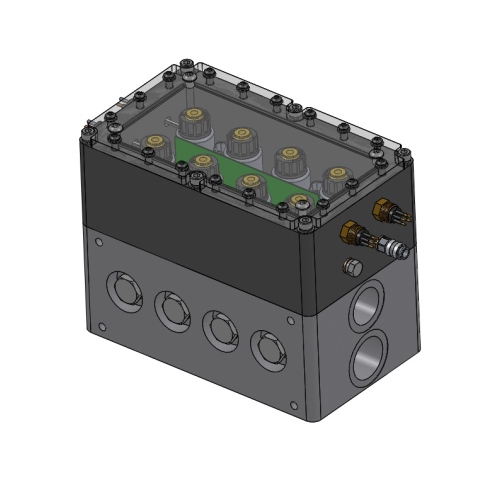

Thruster control Manifold
Serial controlled thruster control manifold that utilises reducing/reliving valves in order to control thruster output by regulating the supply pressure to the thruster.
Thruster control manifold Datasheet

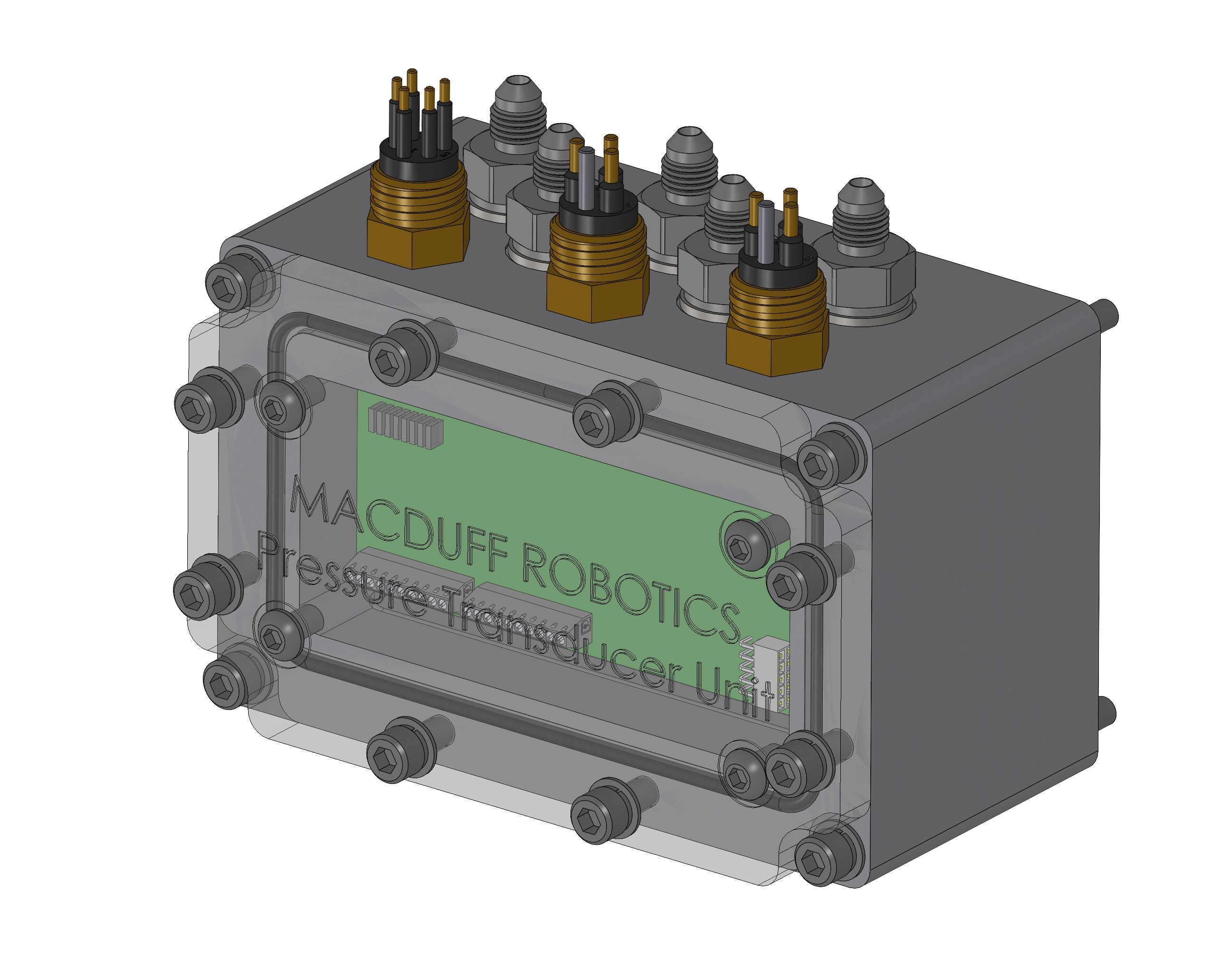

Pressure transducer manifold
Pressure feedback manifold fitted with five 4-20mA pressure transducers with readings transmitted by RS232 serial link.
hydraulic feedback manifold Datasheet

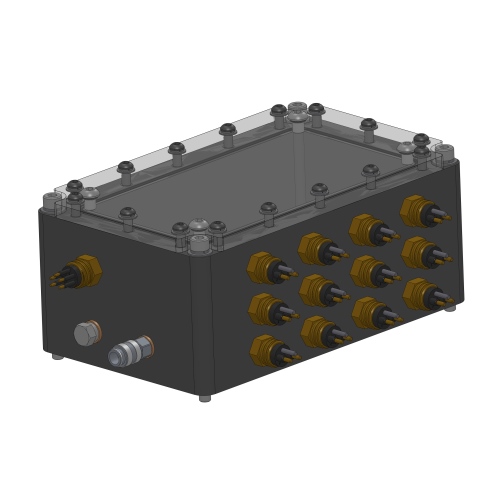

12 Channel Sensor interface
An interface unit for 12 sensors, running from a 110Vac supply, and configrable for 0-5Vdc, 0-10Vdc, and 4-20mA sensors. Digital communications are by an RS232 or RS485 serial channel and power to each individual sensor can be controlled remotely.
Deck equipment
Essential equipment for maintaining and testing your ROV and tooling

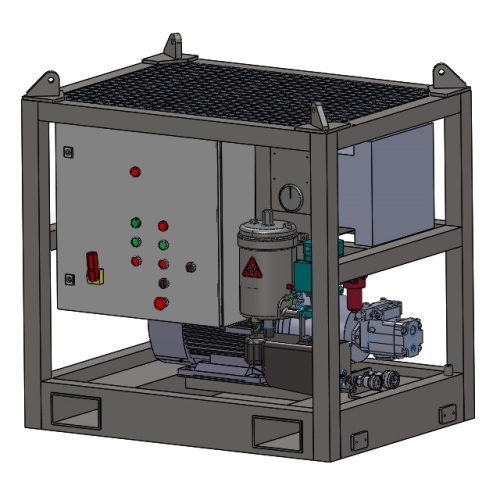

Deck HPU
Deck Hydraulic power unit (HPU) available in 11kW, 22kW, and 37kW versions with or without a CJC filtration unit.
Deck Oil Treatment
Deck Oil Treatment system allows a vehicle to be drained of its contaminated oil and refilled ith previously cleaned oil. The drained oil is the cleaned offline.

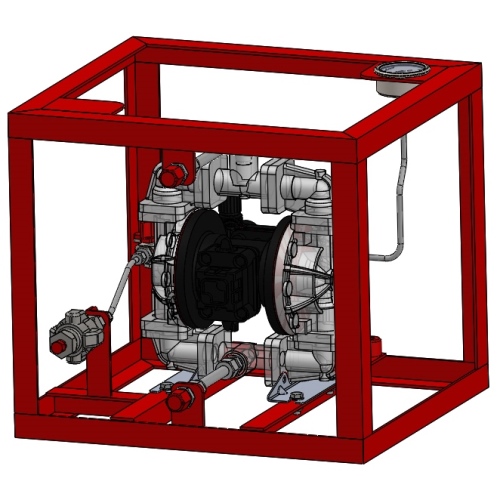

Fluid transfer pump
An air driven fluid transfer pump that can be used to fill subsea systems with fluids from barrels or IBC's.
Dirty Work Pack
DWP Systems

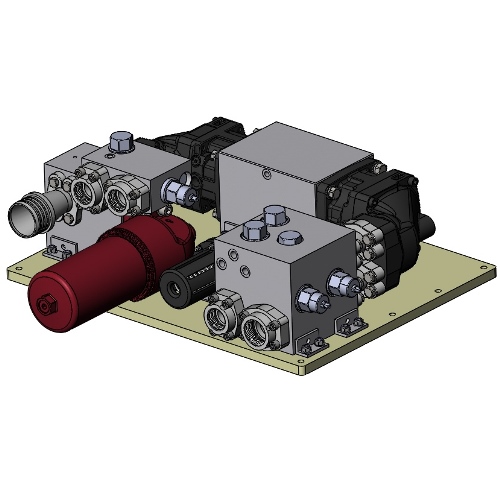

Large Dirty Work Pack
High capacity dirty work pack capable of 320L/min output at 210bar. All fully self contained including 2 speed input control, and output filtration, anti-reverse flow valve, overpressure relief, and startup valve.
Mid-Range Dirty Work Pack
Mid-range dirty work pack capable of 240L/min output at 210bar. All fully self contained including 2 speed input control, and output filtration, anti-reverse flow valve, overpressure relief, and startup valve.

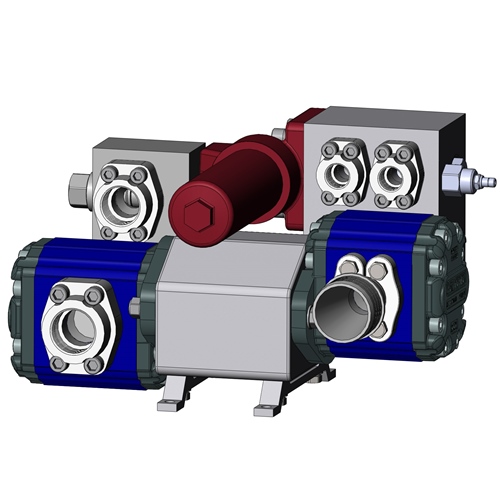

Gear Pump DWP
Frameless DWP built around a gear pump/motor assembly featuring custom manifold on both the sypply and output side giving a reliable and sytem with all hose connections being made from a single side making installation more straightforward and minimising connection points withing the system. Incorporates startup, pressure control, pressure relief and filtration all within one compact unit.

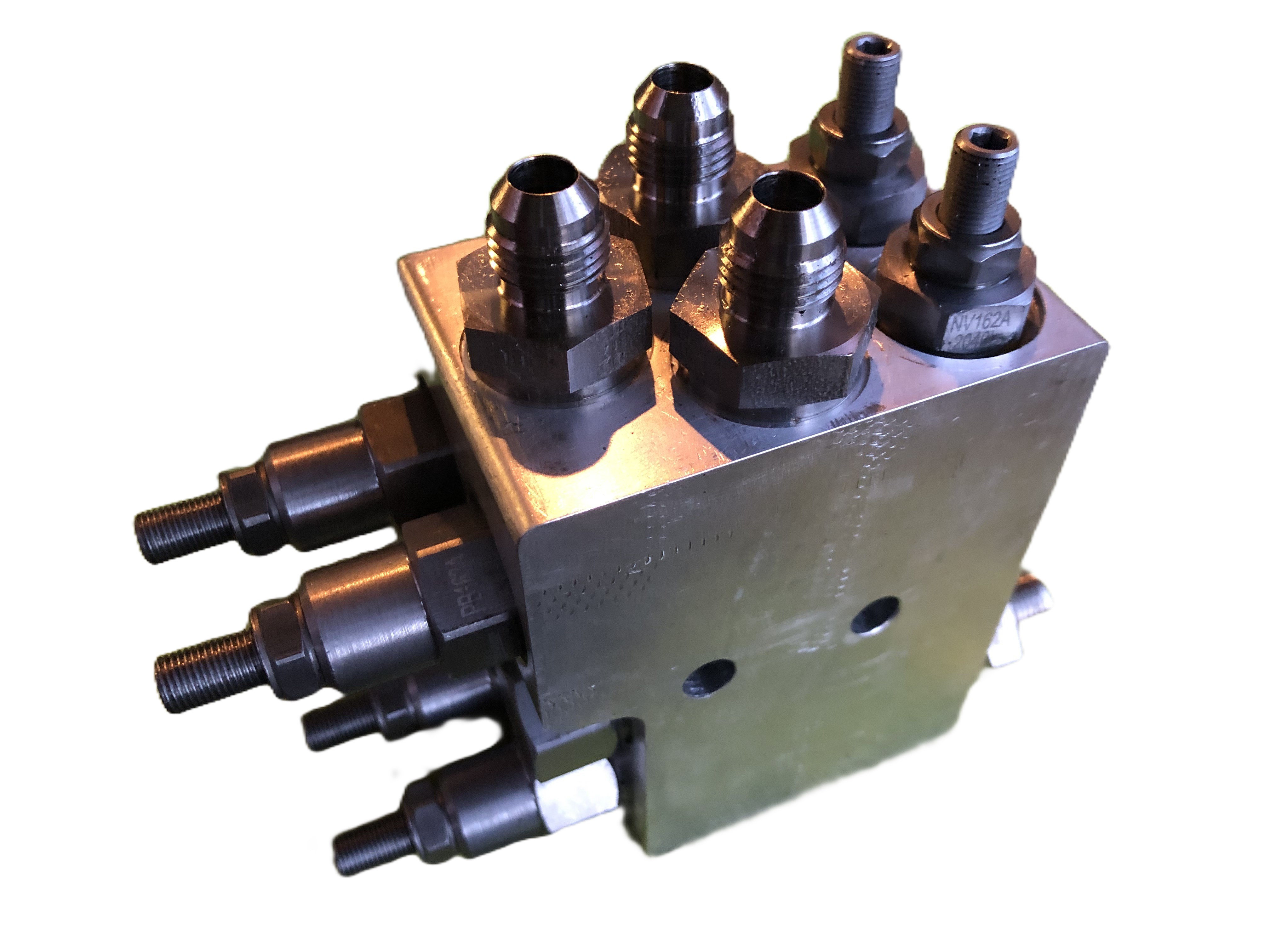

Hydraulic Manifolds
Hydraulic manifolds that simplify installations, reducing system complexity and weight.
Motor Control Manifold
A motor control manifolds of various sizes that allow a motors speed and force to be controlled independently in both directions.
motor control manifold Datasheet

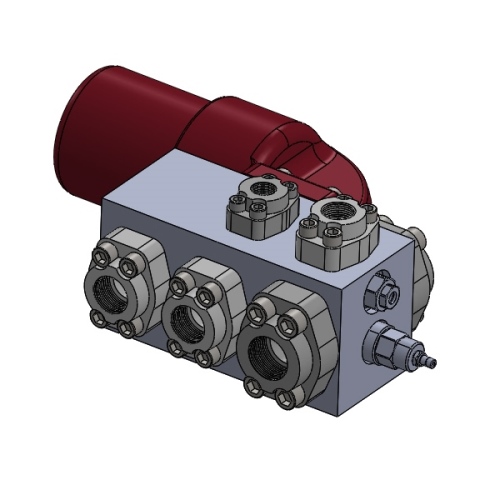

Oil Conditioning Manifold
The oil conditioning manifold takes the output from a hydraulic pump and add critical system requirements such as a non-return check valve, overpressure relief valve, output pressure control valve, and filtration.
Oil conditioning manifold Datasheet

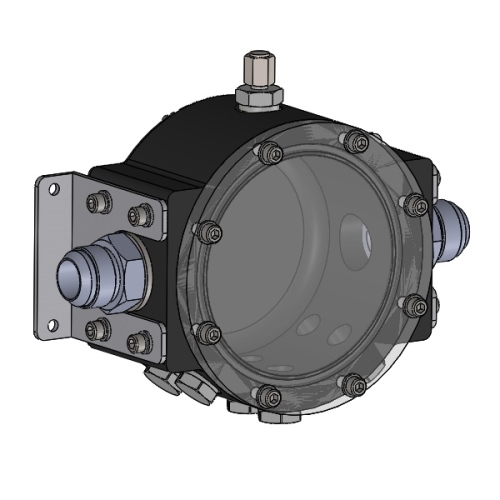

Air bleed tank
The oil conditioning manifold takes the output from a hydraulic pump and add critical system requirements such as a non-return check valve, overpressure relief valve, output pressure control valve, and filtration.
Ball Valves
ROV operated ball valves
ROV operated ball valves

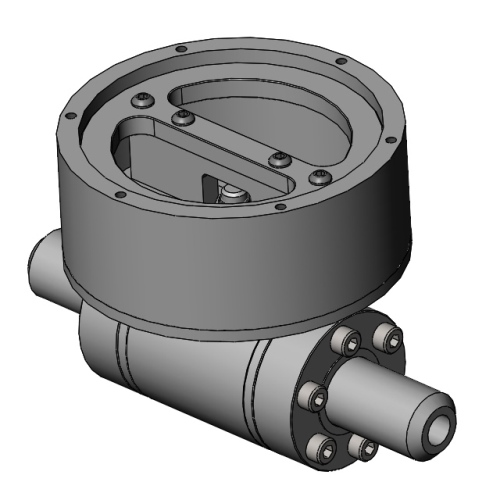

ROV manipulator operated floating ball valve. Available in 1", 2", and 3" pipe sizes in a range of pipe schedules and materials. Typically supplied with weld stubs.
Flowmeters
Flowmeters for various applications and fluid types

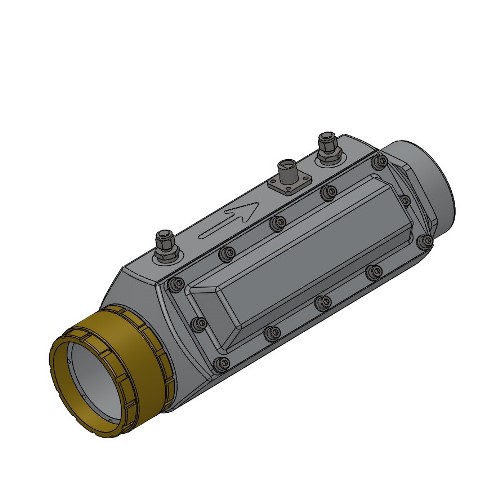

Ultrasonic Flowmeter
ROV manipulator operated floating ball valve. Available in 1", 2", and 3" pipe sizes in a range of pipe schedules and materials. Typically supplied with weld stubs.
Ultrasonic Flowmeter Datasheet
