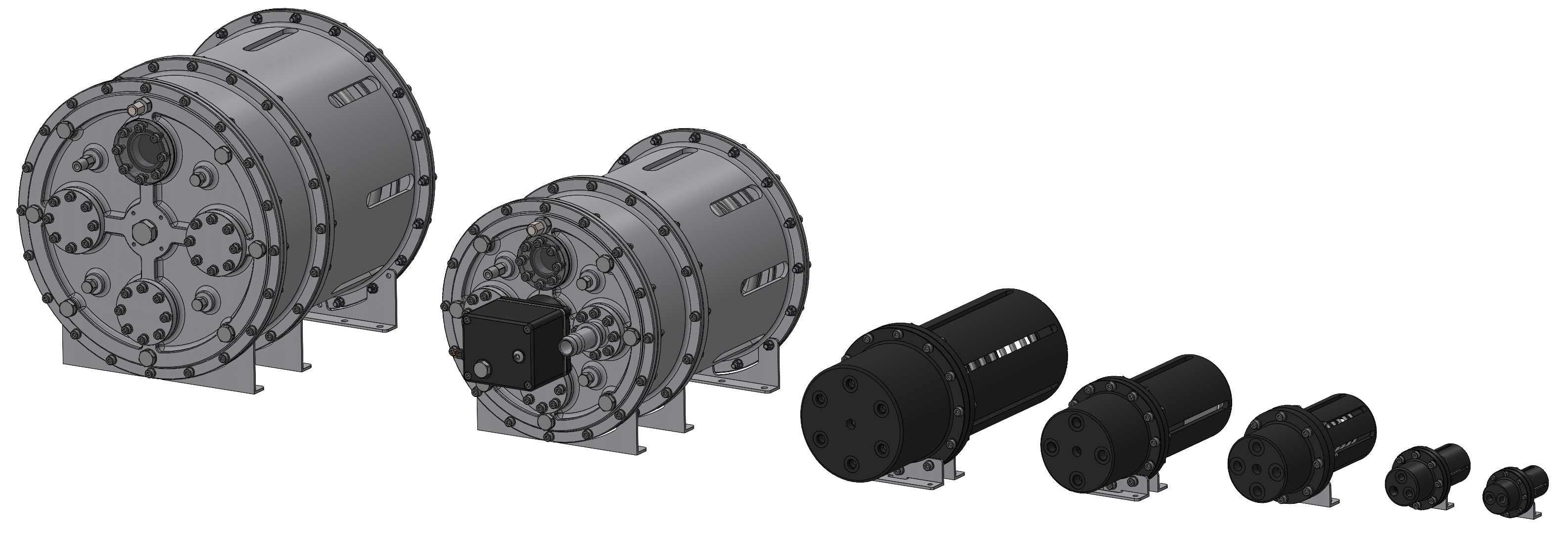

Subsea Pressure Compensators
Hydraulic compensators for pressure balance and fluid storage applications.
3d Model Download
Subsea Compensators 3d Models 3d CAD Models available for download and integration into your designs, available in most common formats.

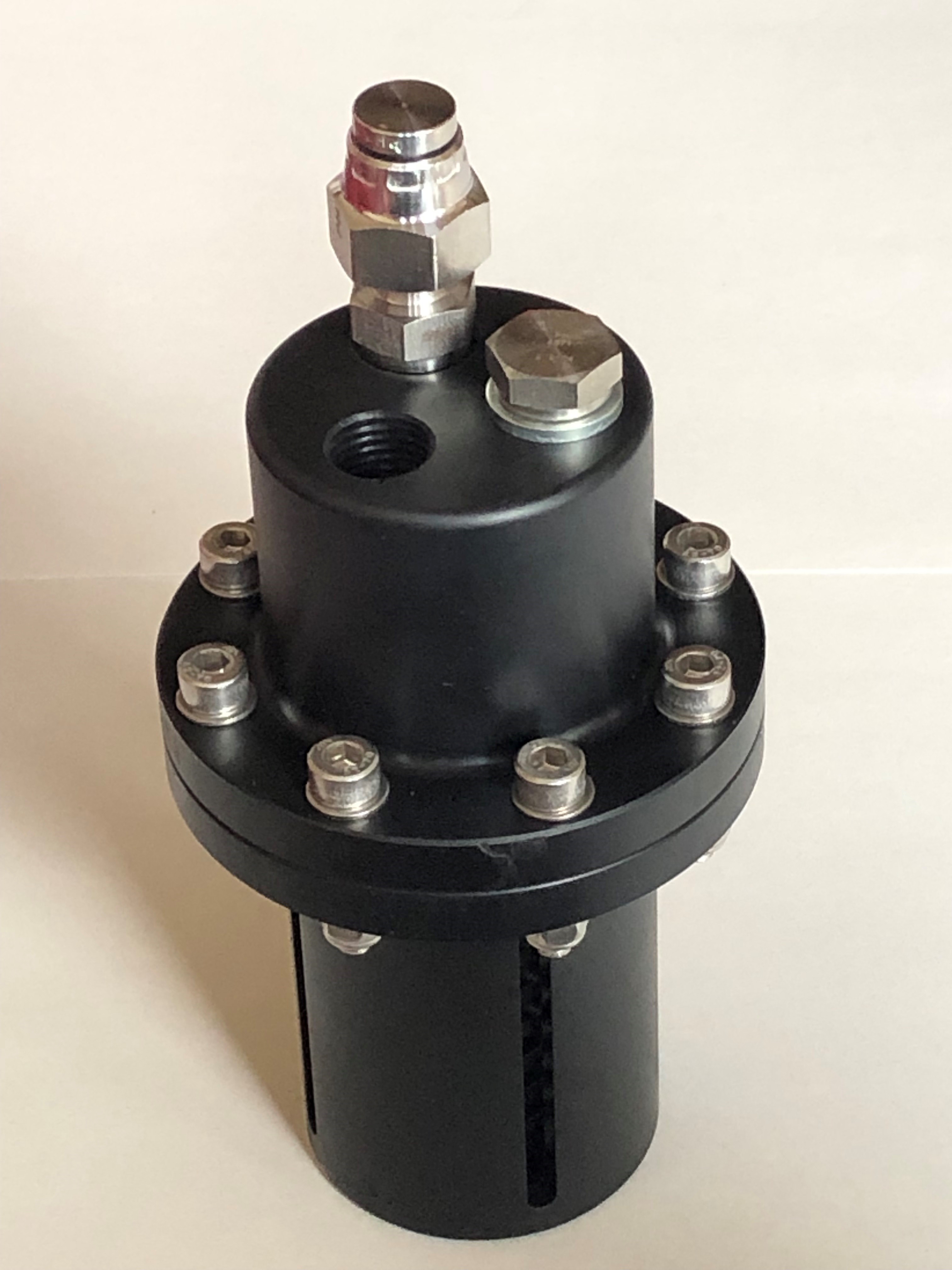

General Purpose Subsea Compensators
A range of general purpose hydraulic pressure compensators manufactured from tough corrosion resistant plastic with stainless steel springs and nitrile rubber diaphragms. Available in 7 size options from 26cc to 2701cc capacity with all major port threads including SAE, NPT, and BSPP. Typical options include over-pressure relief valve.
Datasheet
Subsea Pressure Compensators Datasheet
Example Installation Drawings
74cc 3x G1/8 74cc 2x G1/4 74cc

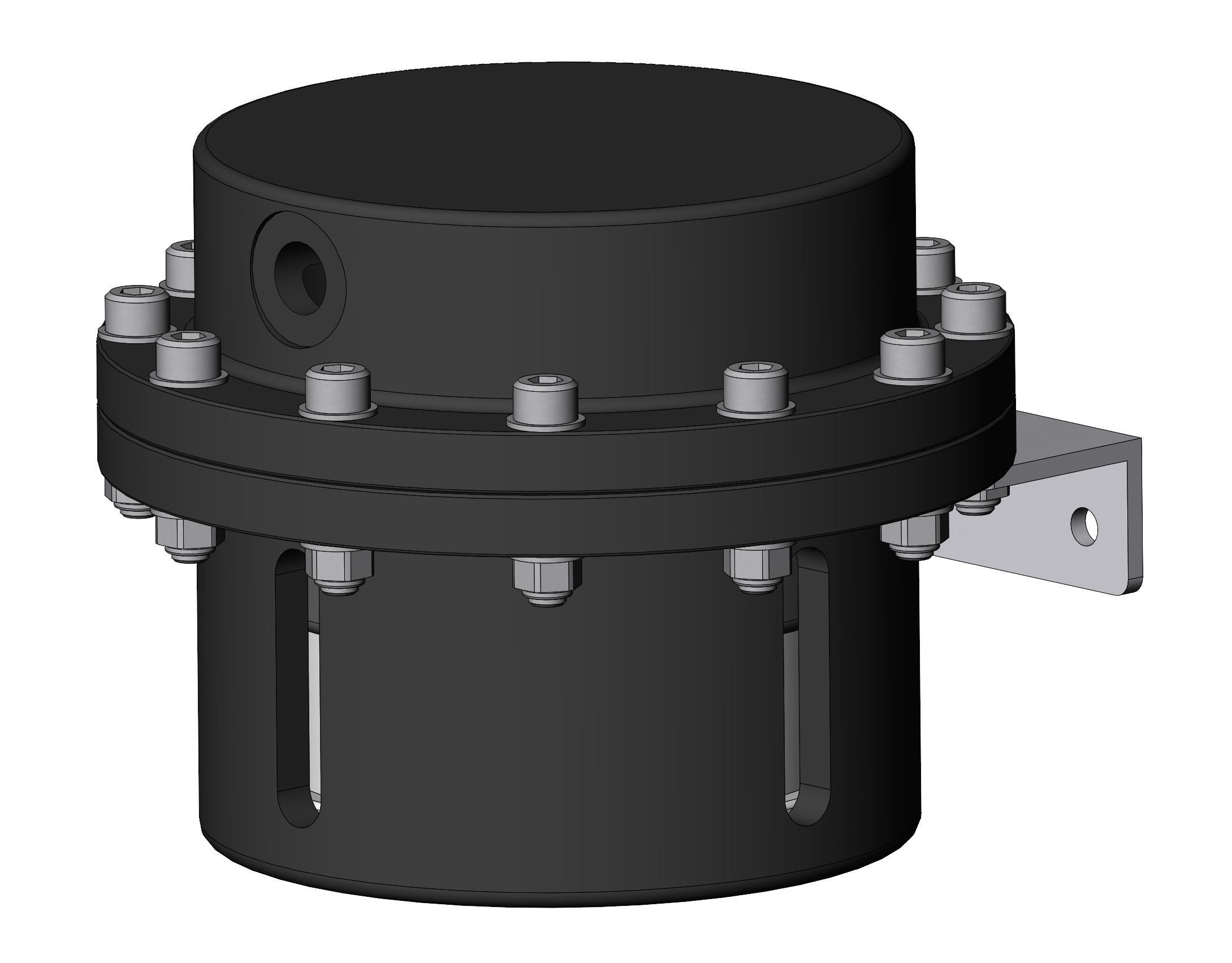

Low Profile Subsea Compensators
Special purpose compensators specifically designed for space limited installations with side connection port.
Datasheet
Subsea Pressure Compensators Datasheet
Example Installation Drawings

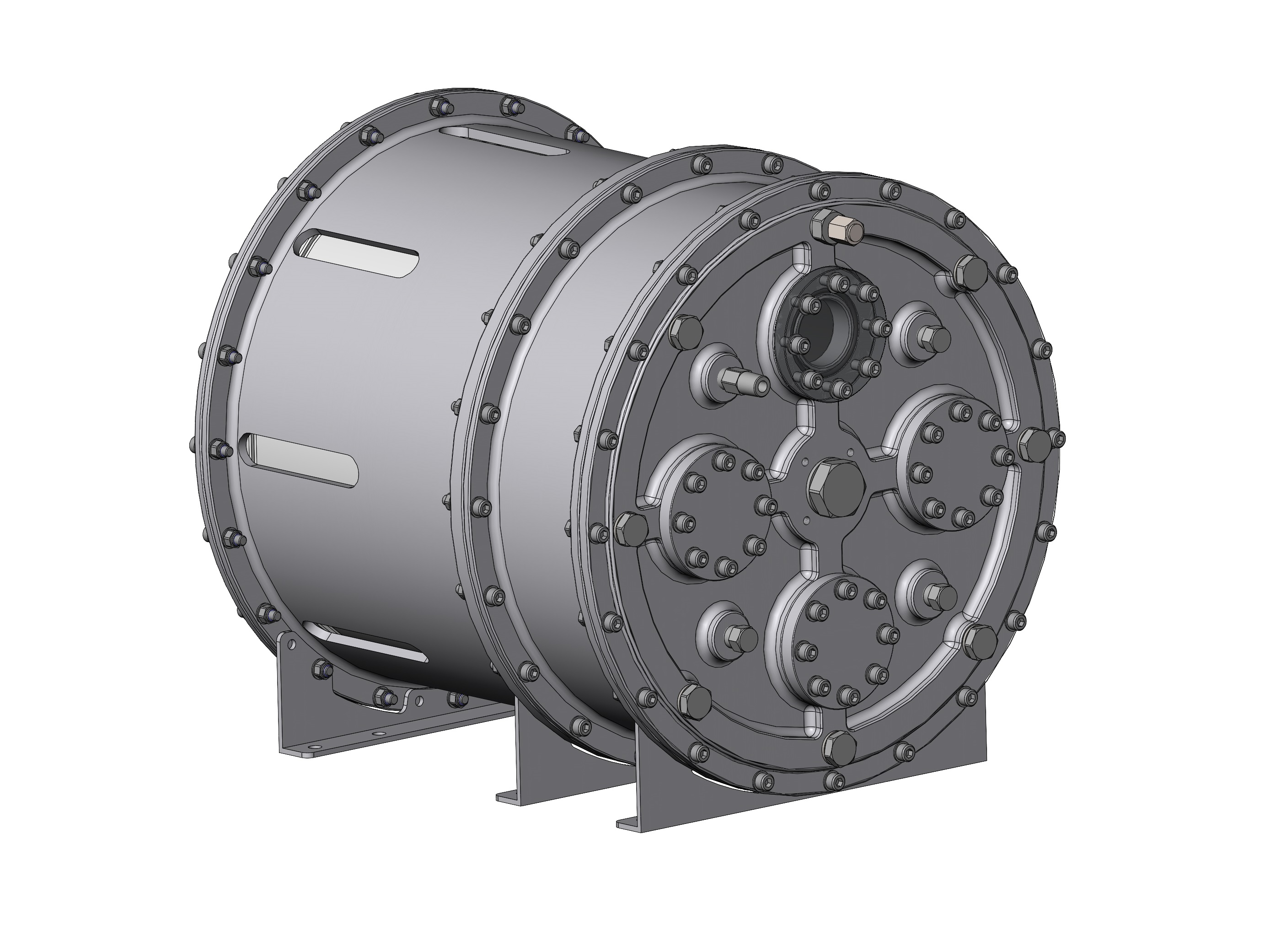

Reservoirs and fluid storage
Low pressure hydraulic reservoir units for various subsea hydraulic systems and fluid storage applications. Available in 9550cc and 15587cc
Datasheet
Example Installation Drawings
